Oil-injected rotary screw compressors
GL37-75 Low-Pressure Air Compressor
The GL37-75 series is an oil-injected screw compressor product developed for low-pressure applications. It offers you more than just fuel savings; it provides more compressed air and a longer lifespan. The compression components and numerous features ensure robust performance and excellent efficiency.

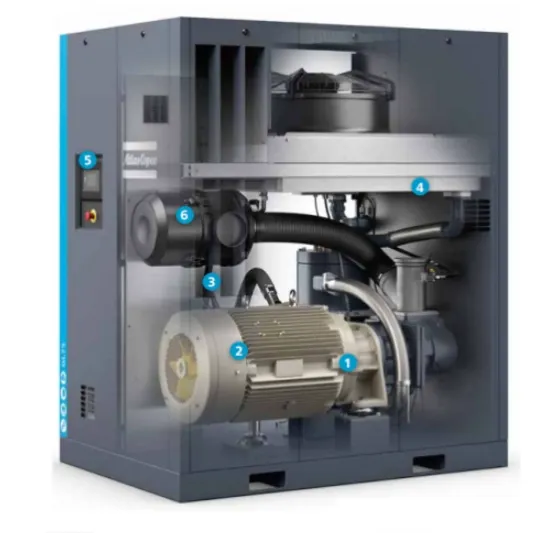

GL37-75 Low-Pressure Air Compressor
- Maintenance-free, fully enclosed, preventing dust and debris from entering.
- Suitable for harsh environments.
- High-efficiency gear drive, no coupling efficiency loss.
- Standard model maximum operating ambient temperature: 46°C; high-temperature model: 55°C.
- Ultra-high efficiency motor
- Motor efficiency class: IE4.
- Protection class: IP55; Insulation class: F; Temperature rise: B. Non-drive end uses grease-lubricated maintenance-free bearings Suitable for continuous operation in harsh environments Rugged spinning oil filter Highly efficient filtration of impurities in the oil, extending component lifespan Oil filter with bypass valve
- Independent, oversized oil cooler and aftercooler Low rotor outlet temperature ensures long oil lifespan Built-in mechanical steam-water separator removes nearly 100% of condensate Stress-relief design eliminates thermal shock in heat exchangers
- Elektronikon touchscreen controller Comprehensive features including remote control, alarm output, maintenance schedules, and network diagnostics. Built-in Smartlink remote diagnostics maximizes compressor system performance and energy savings ·Diagnoses multiple compressors (2, 4, and 6 units can be controlled simultaneously)
- Heavy-duty intake filter Removes 99.9% of coarse dust particles, enhancing protection for compressor components Extremely long service life
